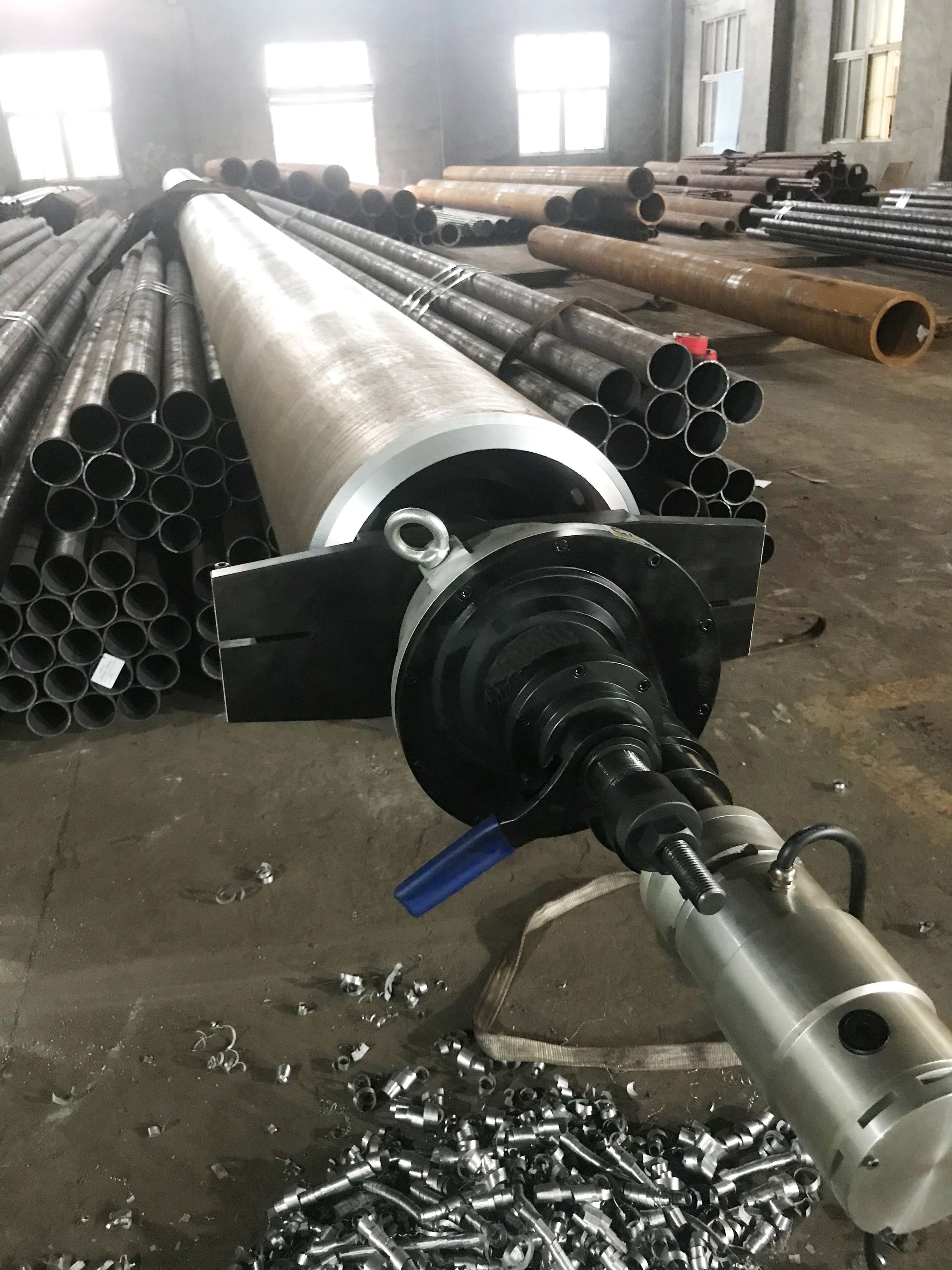

PIPE BEVELING MACHINE

Completely cold cutting, suitable for bevel of stainless steel, carbon steel and alloy steel with multiple specifications

中文

PIPE BEVELING MACHINE

Key features:

Completely cold cutting, suitable for bevel of stainless steel, carbon steel and alloy steel with multiple specifications;

It is applicable to bevel, chamfer and flat process of "V" and "U" type weld of all grades of carbon steel, stainless steel, alloy steel and other materials. And it can also be used to cut and bevel of the welded raised face flange and flat face flange;

The applicable pipe diameter range is large, and a single equipment can meet the needs of the maximum span pipe diameter;

The cutting amount is adjustable, and the bevel angle 0 ° - 45 ° can be selected arbitrarily;

Light weight, easy to carry;

The installation is fast and convenient, and the expansion structure can be inserted into the inner wall of the pipe to automatically position and align;

Various driving modes, electric and pneumatic.

ET-30

ET-30

ET-120

ET-219

ET-252

ET-352

ET-426

PIPE BEVELING MACHINE

技术参数：

Model ET-30 ET-80 ET-120 ET-159 ET-219 ET-252 ET-352 ET-426 ET-630
Processing range( mm ) Φ15-28 Φ28-89 Φ40-120 Φ60-159 Φ65-219 Φ80-273 Φ145-356 Φ250-426 Φ300-630
Input motor power（W） 1600 1300 1600 1600 1600 1600 1600 2000 2000
Working voltage (V) 220 220 220 220 220 220 220 220 220
Frequency（HZ） 50 50 50 50 50 50 50 50 50
Rotating cutter head speed (rpm) 70 48 39 34 21 18 15 14 14
Maximum feed stroke （mm） 30 30 30 30 30 30 35 35
Maximum wall thickness of one cutting 20 15 20 20 20 20 20 20 20
Net weight（KG） 8.5 9 15 19 33 50 86 106
